Brightlink’s New Large Scale 163” LED Display - High Definition 1.56mm Small Pitch / 16:9 ration- Slim Mount LED Cabinets for Indoor fixed installs.
Introducing Brightlink’s New Large Scale 163” HD 1.56mm Pitch Slim Mount (60mm/2.36”) LED Wall System for indoor fixed installation such as Home Theatre, Conference rooms, Control Centres, Digital Signage for store fronts, education and training, and much more.
This High Resolution Above FULL HD LED wall has 2,985,984 PIXEL and with a brightness of 600cd/m2 and refresh rate of 3840Hz, you will get dazzling HD images that will leave your viewer memorized but what they see.
With the seamless interlocking cabinets you get no lines like regular LCD video walls, giving you a clean sharp look for your large scale displays.
The integrated control box design makes for easy connection and easy repairs. They integrated control box and module can be replaced from the front in case of repair.
The VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
This Brightlink 190” HD mm Narrow Mount LED Wall System is a complete kit which includes everything you need to install this package in your location.
- 36ea 23.62” x 13.3” Interlocking Cabinets each with 4 interchangeable modules. Spare modules included.
- All connecting power and network cables including spares.
- 1ea VX600 All-in-One LED Wall Controller
- 1ea Vacum tool for easy frontal exchange / repair of modules
- 1ea Rail system for mounting to wall
- 190” Diagonal Screen (11.8’ x 6.6’)
- 1.56mm Small Pitch HD LED Cabinets
- VX600 All-in-One LED Wall Controller
- Slim mount Cabinets 60mm ( 2.36”)
- Integrated Box for easy connection
- 16:9 Standard Video Aspect Ratio
- Super Bright 600cd/m2
- 3840Hz Refresh rate
- View Distance from 6’-165’
- 2,985,984 Pixels
- Seamless / line free Interlocking cabinets
- Front repairable modules with included Vacuum tool

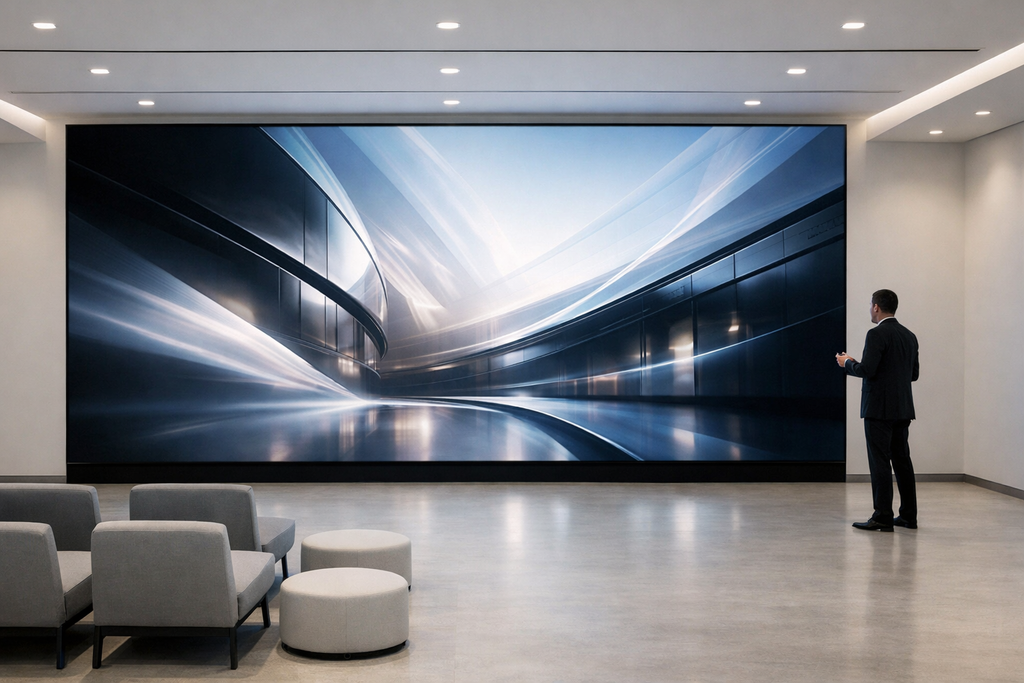

INSTALLATION FRONT VIEW
Pixel pitch: 1.56mm
Module Resolution: W192 x H108 Pixels
Module Size: 320mm x 160mm
Led Packing: 1212
Scanning Method: 48s
LED composition: 1R 1G 1B
Cabinet Size: 600 x 337.5 x 60mm / 23.62” x 13.3” x 2.36”
Module QTY: w2 x h2 = 4pcs
Physical Resolution: w384 x h 216 Pixels
Power Consumption (MAX): 120w
Power Consumption (AVG): 40W
Cabinet Material: Die-Cast Aluminum
Net Weight: 5.5KG / 12LBS
Screen Area: 11.8’ x 6.6’ x 163' Diagonally - 77.8 SQFT
Whole Screen Resolution: 2304(W) x 1296(H) = 2,985,984Pixels
Cabinet Quantity: 6pcs wide x 6 pcs high = 36pcs total
Colors: 281 Trillion
Brightness Control: Software 256 level adjustable
Grey Level: 16
View Distance: 2m-50m / 6’ - 165’
Refresh Rate: 3840Hz
Drive Mode: 1/43s
Life Span: 100,000h
Control Mode: Synchronous control or Asynchronous control
Frame Frequency: 60Hz
Operation Temperature: -20C - +45 C
Operation Humidity: 10% - 95%
Warranty: 2 Years
Shipping Time: Standard: 6-8 week delivery
